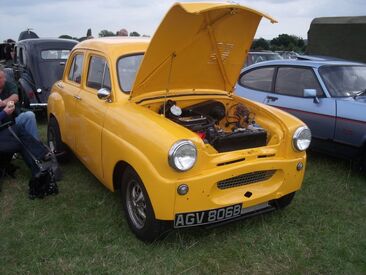

Yellow ford

Austin A40 Cambridge Custom

The Austin Cambridge (sold as A40, A50, A55, and A60) is a motor car range sold by the Austin Motor Company in several generations from September 1954 through to 1969 as cars and 1971 as light commercials. It replaced the A40 Somerset but was entirely new with modern unibody construction. The range had two basic body styles with the A40, A50 and early A55s using a traditional rounded shape and later A55s and A60s using Farina styling.

Note that the A40 number was re-used on a smaller car (the Austin A40 Farina) from 1958 to 1967, and that the Cambridge name had previously been used to designate one of the available body styles on the pre-war 10 hp range. Initially the Austin Cambridge was only offered with a 4-passenger, 4-door saloon body, although a few pre-production 2-door models were also made.[citation needed] It had a modern body design with integrated wings and a full-width grille. Independent suspension was provided at the front by coil springs and wishbones but a live axle with anti-roll bar was retained at the rear. A van derivative introduced in November 1956 and a pick-up introduced in May 1957 remained available until 1974, some 3 years after the demise of the cars on which they had been based.

A40 Cambridge

A 1.2 L straight-4 pushrod engine B-Series engine based on the one used in the previous Austin Somerset powered the new Austin Cambridge. A maximum power output of 42 bhp (31 kW) was claimed: power was transmitted to the wheels by means of a four-speed gear box controlled with a column-mounted lever. Only 30,000 A40 Cambridge models were produced. After the A40 Cambridge was dropped early in 1957, the A40 name was re-used on the smaller A40 Farina, though that car, an early example of the hatchback genre, was neither a replacement nor much related to the A40 Cambridge.

A50 Cambridge

Also introduced in September 1954, and with a body identical to that of the A40 Cambridge, was the A50 Cambridge which used a new 1.5 L (1489 cc) B-Series four-cylinder engine with single Zenith carburettor which was good for 50 hp (37 kW). It sold better and remained in production through to 1957 with nearly 115,000 made. The de luxe version had a heater, leather seat facings, carpets replacing the standard rubber matting, armrests on the doors, twin-tone horns, a passenger sun visor, and some extra chrome including overriders.

Technical advances in the A50 Cambridge included an optional Borg-Warner overdrive unit for the top three (of four) gears. A semi-automatic transmission (branded "manumatic" and providing pedal-free clutch operation) was also offered, but it was unpopular with buyers. A number of modifications were introduced in October 1956 including smaller 13 in (330 mm) wheels and increased compression ratio (8.3:1). A de luxe version tested by The Motor magazine in 1955 had a top speed of 73.6 mph (118.4 km/h) and could accelerate from 0–60 mph (97 km/h) in 28.8 seconds. A fuel consumption of 28.0 miles per imperial gallon (10.1 L/100 km; 23.3 mpg-US) was recorded. The test car cost £720 including taxes. A radio and a clock were optional extras. As with its predecessor the A40 Somerset, the A50 Cambridge was built under licence by Nissan in Japan; the arrangement ended in 1959.

A55 Cambridge

In January 1957, the A55 Cambridge was introduced to replace the A50 model. It used the same 1.5 L B-Series engine as its predecessor, though with a higher compression ratio: 51 hp (38 kW) at 4250 rpm was now available. The Cambridge had been restyled somewhat and now had a larger boot and much larger rear window. The car was also lowered by fitting 13 in (330 mm) road wheels which were smaller than those on the A50 but the overall gearing remained the same by changing the rear axle ratio. Two tone paint was an option. Just over 150,000 were produced when it was replaced by a new Pininfarina-designed A55 Cambridge for 1959. Van and pick-up versions based on the pre-"Farina" A55 were introduced in 1957, and remained in production until 1973. From 1962 they were also offered under the Morris name, and in their final years the van and pick-up were all designated "Morris", following a decision to remove the Austin badge from British Leyland commercial vehicles. A de luxe A55 with manumatic transmission was tested by The Motor magazine in 1957 had a top speed of 77.1 mph (124.1 km/h) and could accelerate from 0-60 mph (97 km/h) in 27.0 seconds. A fuel consumption of 31.6 miles per imperial gallon (8.94 L/100 km; 26.3 mpg-US) was recorded. The test car cost £870 including taxes of £291.

A55 Cambridge Mark II

The A55 Cambridge Mark II, known as the first "Farina" model because of its Pininfarina design, was produced from 1959 through to 1961. It was a rebadged Morris Oxford and retained the 1.5 L B-Series engine, now with an SU carburettor, and producing 55 bhp (41 kW) at 4350 rpm.

The interior had individual leather trimmed seats in front spaced closely together to allow a central passenger to be carried. The gear change was either on the column or floor-mounted and the handbrake lever between the driver's seat and the door. Other improvements highlighted at the time included an enlarged luggage compartment with counterbalanced lid and increased elbow width on both front and rear seats. A heater could be fitted as an optional extra. A "Countryman" estate model appeared in 1960. Austin Cambridge Estates were called "Countryman". (Morris Oxford Estates were called "Traveller".) A55 Mark II and A60 Estates were identical from the windscreen back; the later models never got the reduced rear fins and modified rear lights of the A60 saloons. The engineering of the car was conventional with coil sprung independent front suspension and a live axle at the rear with semi elliptic leaf springs. The braking used a Girling system with 9 in (229 mm) drums all round. Just under 150,000 were built in total.

A MkII A55 was tested by The Motor magazine in 1959 had a top speed of 75.5 mph (121.5 km/h) and could accelerate from 0–60 mph (97 km/h) in 24.5 seconds. A fuel consumption of 31.0 miles per imperial gallon (9.11 L/100 km; 25.8 mpg-US) was recorded. The test car cost £878 including taxes of £293.

Australian production

The A55 Mk II entered production in Australia in 1959 with a 1622 cc version of the “B” Series four-cylinder engine as the Austin A60.[9] Australian use of the larger engine and the A60 name thus preceded British usage by two years.[9] The A60 was replaced in 1962 by a revised model powered by a six-cylinder 2400 cc engine. It was marketed as the Austin Freeway and was produced by BMC Australia until 1965.

A60 Cambridge

An updated Cambridge model, now called the A60, was introduced for 1961. It included a new 1.6 L version of the B-Series straight-4 engine which had first been used in the MGA. Modified styling included side chrome stripes – some models with contrasting colour infills – and reduced fins on the rear wings. The style continued to be known as "Farina". This body covered a chassis that was slightly longer in wheelbase and wider in track than the A55. This allowed three people to be accommodated on the rear seat. Anti-roll bars were added to both front and rear suspension.

A diesel version was introduced in 1961 for export cars and was available in the UK from 1962. Early manual models had the option of column gear change. The Borg Warner three-speed Type 35 automatic transmission was an option, the first British car to be fitted with this type, with the selector on the steering column. The A60 Cambridge sold well, with over 275,000 built when production finally ended in 1969. Its intended successor, the front-wheel-drive Austin 1800 of 1964, did not dent sales, so Cambridge production was continued until 1969 at the Morris plant at Cowley when the Austin Maxi took over production and the Morris Oxford version continued in production until 1971, when the Morris Marina was launched. Austin A60 saloons assembled in Ireland by Brittain Smith of Portobello, Dublin 2 were identifiable by the use of Morris Oxford series VI tail-lights. The last of these were produced in 1970, and some were registered in 1971. The A60 Cambridge was effectively replaced by the Austin Maxi hatchback in April 1969, while the Oxford continued until early 1971, when it was replaced by the Morris Marina. The car was popular with the UK taxi trade, but its dominating popularity with the Hong Kong taxi trade was even more impressive. In 1967 taxi versions of the Austin A60 accounted for nearly 17% of car sales, helping BMC to a total Hong Kong car market share of 28% in that year.

Both a manual and automatic versions of the A60 were tested by The Motor magazine in 1961. The manual had a top speed of 80.4 mph (129.4 km/h) and could accelerate from 0–60 mph (97 km/h) in 19.8 seconds. A touring fuel consumption of 25.1 miles per imperial gallon (11.3 L/100 km; 20.9 mpg-US) was recorded. The test car cost £883 including taxes of £278. The automatic was slightly slower, with a top speed of 77.9 mph (125.4 km/h) and acceleration from 0–60 mph (97 km/h) in 24.9 seconds. A touring fuel consumption of 28.9 miles per imperial gallon (9.77 L/100 km; 24.1 mpg-US) was recorded. The car cost £982 including taxes of

Summary

Austin Cambridge came in 5 guises.

  • The A40 was built from 1954-1956 and was also called the Farina.
  • The A50 built from 1954-1957 looked the same as the A40 but had a larger 1.5 litre engine producing 50bhp.
  • The A55 took over from the A5O from 1957-1958 and was available as a half ton van.
  • The A55 mk2 built from 1959-1961 was a bigger vehicle and was rebadged as the Morris Oxford.
  • Finally came the A60 which was built from 1961-1969.The car came with the option of an automatic gearbox and petrol or diesel engines and unlike its predecessors the rear seat could take three people.
