The Dino models used Ferrari racing naming designation of displacement and cylinder count with two digits for the size of the engine in deciliters and the third digit to represent the number of cylinders, i.e., 246 being a 2.4-litre 6-cylinder and 308 being a 3.0-litre 8-cylinder. Ferrari street models of the time used a three-digit representation of the displacement in cubic centimeters of one of the 12 cylinders, which would have been meaningless in a brand with differing numbers of cylinders.
The Dino 246 was the first Ferrari model produced in high numbers. It is lauded by many for its intrinsic driving qualities and groundbreaking design. In 2004, Sports Car International placed the car at number six on its list of Top Sports Cars of the 1970s. Motor Trend Classic placed the 206/246 at number seven in their list of the 10 "Greatest Ferraris of all time".
The name "Dino" honors the founder's late son, Alfredo "Dino" Ferrari, who was credited with the design of the V6 engine. Along with famed engineer, Vittorio Jano, Dino influenced Enzo Ferrari's decision to produce a line of racing cars in the 1950s, with V6 and V8 engine designs. History shows that Alfredo Ferrari did not have a hand in the actual design of the V6 motor that made its way into the Dino.
The "Dino" brand was created to market a lower priced, "affordable" sports car. The first brochure described the Dino as "almost a Ferrari". Ferrari intended to do battle in the marketplace with Porsche and its 911. The more expensive road going Ferrari V12's of the time were no match at their much higher price point. But Enzo did not want to diminish the Ferrari brand with a cheaper car, and so "Dino" was born.
In addition to being a lower priced, "affordable" sports car, it was a car built in Alfredo's honor after he lost his battle with muscular dystrophy. While in hospital, he discussed technical details with the engineer Vittorio Jano. Dino would never see the engine; he died on June 30, 1956 at the age of only 24, before his namesake automobiles Fiat Dino and Dino were produced.
Ferrari wished to race in the new 1.6 L Formula 2 category in 1967 with the Dino V6 engine. However, the company could not meet the homologation rules which called for 500 production vehicles using the engine to be produced. Enzo Ferrari therefore asked Fiat to co-produce a sports car using the V6, and the front-engined, rear-drive Fiat Dino was born. It used a 2.0 L (1987 cc) version of the Dino V6, allowing Ferrari to compete in the category.
At the time, the thought of using a mid-engine layout in a production car was quite daring, although the design was common in the world of sports car racing. A mid-engined layout placed more of the car's weight over the driven wheels, and allowed for a streamlined nose, but led to a cramped passenger compartment and more challenging handling. Lamborghini created a stir in 1966 with its mid-engined Miura, but Enzo Ferrari felt that a mid-engine Ferrari would be unsafe in the hands of his customers. Eventually he relented, and allowed designer Sergio Pininfarina to build a mid-engined concept for the 1965 Paris Motor Show, but demanded that it wear the Dino badge alone. The 1966 Turin car show featured a refined Dino 206S. The Turin 206S was a closer prototype to the actual production version. Response to the radically styled car was positive, so Ferrari allowed it to go into production, rationalizing that the low-power V6 engine would keep his customers out of trouble.
Dino 206 GT
The production Dino 206 GT had the soft edges and curving lines typical of earlier Italian cars, unlike its successor, the Bertone designed 308 GT4, which has the straighter lines and crisp edges seen most boldly in Bertone's later Fiat X1/9. While designed by Pininfarina, construction was undertaken by Scaglietti.
The 206 GT used a transverse-mounted 2.0 L all-aluminum, 160 hp (119 kW) at the 8,000 rpm redline, 65-degree V6 engine with dual overhead camshafts and a 9.7:1 compression ratio. Torque was 138 pounds*foot at 6,500 rpm. The crankshaft featured four main bearings. Induction was via three Weber 40 DCN/4 2-barrel carburetors. The 206 GT was the first car sold by Ferrari which used an electronic ignition, a Dinoplex C capacitive discharge ignition system that was developed by Magneti Marelli for the high revving Dino V6 engine (hence the name Dinoplex). It was also the first Ferrari product to have a direct rack-and-pinion steering.
The 206 GT frame featured a light-weight, 1980 pound, aluminum body, full independent suspension, and all round disc brakes. The 206 GT had a 90.0-inch (2,290 mm) wheelbase. The 206 had a top speed of 146 mph (235 km/h).
152 were built in total during 1968 and 1969, in left hand drive only.
The same 2.0L engine was used in the Fiat Dino Coupe and Spider, produced during the same period. The conversion of the Dino 196 racing engine for road-going use in the Dino (and the two Fiat models) was entrusted by Fiat to Aurelio Lampredi, to whom Ferrari owed so many great engines. Lampredi, interviewed in the early 1980s (he died in 1989 at the age of 72), noted that, "Things didn't work out exactly as Ferrari had foreseen." Ferrari had counted building the engines at Maranello, but Fiat's management insisted on taking control of production, to avoid any breaks in the engine supply.
Fiat quoted 160 hp DIN for the Fiat Dino and Coupé, and in 1967 Ferrari – presenting the first prototype of the Dino 206 GT – claimed 180 hp. This, however, was not the case. Both engines were made by Fiat workers in Turin on the same production line, without any discrimination as to their destination, and all were exactly the same. 150 units were simply taken from the first production batch at the beginning of 1968 to power the Dino 206 GTs. Jean-Pierre Gabriel, writing in "Les Ferraris de Turin", notes that, "La declaration de Ferrari ne reposait sur aucun fondament technique" – Ferrari's statement had no technical basis! However, as always, it was certainly a savvy piece of marketing by the Commendatore.
Later Fiat Dinos also used the 2.4L engine, although significantly fewer were produced with this motor.

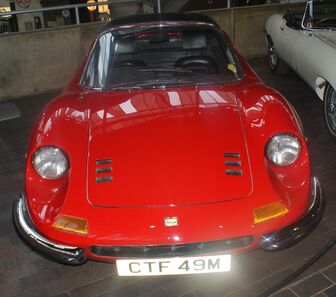

Dino 246 GT & GTS
Calls for more power were answered with the 2.4 L (2418 cc) Dino 246. The motor was a 65-degree, dual-overhead-camshaft, 9.0:1 compression ratio, iron block with alloy heads. The European motor produced 195 bhp (at 7,600 rpm), and was available as a fixed-top GT coupe or, after 1971, an open Spyder GTS. The American version had an exhaust air-pump, and timing changes which created 175 hp (130 kW). The GT had 3 Weber 40 DCNF/6 or 40 DCNF/7 carburetors. For the 246 a new version of the Dinoplex ignition was deployed, the more compact Magneti Marelli AEC103A system.
The 246 Dino GT weighed 2,380 lb (1,080 kg). The 246 Dino GTS weighed 2,426 lb (1,100 kg). The body was now made of steel to save cost. The 246 Dino had a 2.1-inch (53 mm) longer wheelbase than the 206, at 92.1 inches. The height of the 246 was the same as the 206 at 43.9 inches.
Dino 246 production numbered 2,295 GTs and 1,274 Spyders, the latter being built from 1972 to 1974 only, for a total production run of 3,569. Three series of the Dino were built, with differences in wheels, windshield wiper coverage, and engine ventilation. The Series I cars, 357 of which were built until the summer of 1970, used the same center-bolt wheels as did the 206. Series II cars (built until July 1971 in 507 examples) received five-bolt Cromodora alloys and "clap-hands" wipers. The Series III cars had minor differences to gearing and fuel supply, and were built at a much higher rate as sales in the United States commenced with this version. 1,431 Series III coupés and 1,274 GTS cars were built.
The 246 had a claimed top speed of 146 mph (235 km/h), although in July 1971 a road test by Britain's Motor magazine reported a top speed of 148 mph (238 km/h), which compared favourably with the 136 mph (219 km/h) achieved by a recently tested (though by now replaced) Porsche 911S. With a 0 – 50 mph (80/km/h) acceleration time of 5.5 seconds the Dino narrowly out performed the Porsche again, although the Porsche was narrowly the winner on fuel economy. The manufacturer's recommended UK retail price of £5,485 was higher than the £5,211 asked for the Porsche, although both cars were retailing for more than the equally brazen if in other respects very different Citroën SM, at £4,700.
The Dino's 2.4 L V6 found its way into a number of other Italian performance cars after its application in the 246, most notably the Lancia Stratos rally car. There were some minor differences in trim for various markets, with the most obvious ones being the different marker lights used on US market Dinos. There was also the optional "chairs and flares", Group 4-style flared wheelarches combined with seats from the 365 GTB/4 Daytona which were often ordered in conjunction with wide, sand-cast Campagnolo alloys.
Dino 308 GT4
The 308 GT4 was produced from 1973 to April 1980. Initially branded "Dino", the 308 GT4 was Ferrari's first V-8 production automobile.
The 308 was a 2+2 with a wheelbase of 100.4 inches (2,550 mm). The 308 was designed by Bertone; with its angular wedge shape, it looked quite differently from the 206/246 from which it was derived.
The 308 GT4 V-8 had a 90-degree, dual-overhead-camshaft, 2927 cc motor with 4 Weber carburetors which produced 250 hp (186 kW). The V-8 block and heads were made of an aluminum alloy. The compression ratio was 8.8:1. The American version had a timing change and an air-pump; it produced a modest 230 hp (172 kW). The GT4 weighed 2535 pounds.
The 308 GT4 wore the Dino badge until May 1976, when it finally got the Ferrari "Prancing Horse" badge on the hood, wheels, and the steering wheel.
